Android guide

Show a TaleArt zone in an Android app with the Android SDK: a view for XML layouts, or a composable for Jetpack Compose. You need the zone key from the dashboard, the same key the Web SDK uses. The Android SDK sends analytics events too (see Analytics below), so the zone's Analytics tab counts the app along with the web.

Before you start

• Android 7.0 (API 24) or later, and Kotlin. The SDK brings its own Compose UI; a Compose app needs nothing more.
• For the XML view: a host with a lifecycle, such as a ComponentActivity, an AppCompatActivity or a Fragment. A plain Activity shows nothing and logs a warning.
• A zone with a display, and its key (tak_…), from the zone's Install tab in the dashboard.

Steps

1. Add the dependency

   Add android-sdk to your app module. It comes from Maven Central, group site.lempert.taleart, and brings mobile-sdk (the shared core) with it. Gradle Kotlin DSL:

   dependencies {
       implementation("site.lempert.taleart:android-sdk:0.1.1")
   }

   Groovy (build.gradle):

   dependencies {
       implementation 'site.lempert.taleart:android-sdk:0.1.1'
   }

   Your app also needs the internet permission, which the SDK does not add for you. In AndroidManifest.xml:

   <uses-permission android:name="android.permission.INTERNET" />



2. Get the zone key

   On the zone's Install tab in the dashboard, copy the key (tak_…). The key is shown once, when it is issued. Put it in your code as a value, never in a URL. It reads that one zone, so treat what the zone shows as public. Rotating the key issues a new one and stops the old one at once.



3. Place the zone: XML or Compose

   In XML, add a TaleartView with the key in app:taleartZoneKey. Its width fills the parent and its height is wrap_content: the bar or banner sets the height.

   <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
       xmlns:app="http://schemas.android.com/apk/res-auto"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       android:orientation="vertical">

       <site.lempert.taleart.sdk.android.TaleartView
           android:id="@+id/taleart_top"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           app:taleartZoneKey="tak_YOUR_ZONE_KEY" />

   </LinearLayout>

   In Compose, call TaleartZone. It takes the API origin and the key first; an empty API origin uses the one set in step 4.

   import androidx.compose.foundation.layout.Column
   import androidx.compose.runtime.Composable
   import androidx.compose.ui.Modifier
   import androidx.compose.foundation.layout.fillMaxWidth
   import site.lempert.taleart.sdk.ui.TaleartZone

   @Composable
   fun HomeScreen() {
       Column {
           TaleartZone(
               apiUrl = "",                       // empty: the API URL set in TaleartSdk.init
               zoneKey = "tak_YOUR_ZONE_KEY",
               modifier = Modifier.fillMaxWidth(),
           )
       }
   }



4. Initialise once in Application

   Set the SDK's configuration once, in Application.onCreate, before any view shows. Every view reads it; a later TaleartSdk.init replaces it, and the views read it again. Set apiUrl: a native app has no page to take the origin from, and with an empty one a zone shows nothing. Register the class in the manifest:

   import android.app.Application
   import site.lempert.taleart.sdk.TaleartConfig
   import site.lempert.taleart.sdk.TaleartSdk

   class TaleartApp : Application() {
       override fun onCreate() {
           super.onCreate()
           TaleartSdk.init(
               TaleartConfig(
                   apiUrl = "https://api.example.com",
               ),
           )
       }
   }

   <application
       android:name=".TaleartApp"
       ... >



5. Pass viewer properties

   Pass what the app knows about the viewer as properties: a map from a name to a String, a number, a Boolean or a list of Strings. A tale group can carry an audience rule, set in the dashboard under its targeting, and the SDK shows the group only when the rule passes these values. The rule can test a value with eq, in, gt, contains, exists and the other operators listed on the Targeting page.

   TaleartSdk.init(
       TaleartConfig(
           apiUrl = "https://api.example.com",
           properties = mapOf(
               "plan" to "pro",                            // a String
               "age" to 34,                                // a number
               "newsletter" to true,                       // a Boolean
               "segment" to listOf("beta", "newsletter"),  // a list of Strings
           ),
       ),
   )

   A name starts with a letter and uses letters, digits, _, . or -, up to 64 characters, and is case-sensitive. A map has at most 50 properties, a string at most 256 characters and a list at most 50 items. An invalid entry is ignored. Dates go as epoch milliseconds.

   Leave the properties out (null, the default) when the app passes none: every group's audience rule then passes, as it does with no tags. An empty map means the app knows nothing about the viewer: a group whose rule needs a value is then left out, while the negative conditions (neq, notIn, notExists) pass.

   A group shows only when its tags and its audience rule both pass. The properties stay on the device: the SDK sends them in no request header, no URL and no analytics event. The rule itself is public, as the tag names are, so keep private content out of rule values.

   A view can use its own properties in code (there is no XML attribute for them). They replace the SDK's for that view only:

   // One view only: its properties replace the SDK's, and its zone is read again at once.
   view.properties = mapOf("plan" to "free")   // Java: view.setProperties(map)

   // Back to the SDK's properties:
   view.properties = null

   A later TaleartSdk.init applies its properties on the next read of a zone: a zone already on screen keeps the groups it shows until it reads again, as it does for tags. Setting a view's properties reads that view's zone at once. The Compose TaleartZone has no properties of its own (see Not available natively yet).

6. Listen to hooks and override a link

   A listener gets the zone's events: onLoaded, onLoadFailed, onPresented, onActionClicked and the rest. Set it in TaleartConfig.listener for every view, or on one view with its listener; the view's runs first. Each method has a default that does nothing, so override only what you use.

   onActionClicked is the one hook with an answer. Return true when your app routed the link, and the SDK does not open the URL. Return false and the system browser opens it.

   import site.lempert.taleart.sdk.TaleartEvent
   import site.lempert.taleart.sdk.TaleartListener

   class AppHooks(private val router: AppRouter) : TaleartListener {
       override fun onLoaded(event: TaleartEvent) {
           // The zone with the key prefix event.zoneKeyPrefix is on screen.
       }

       override fun onActionClicked(event: TaleartEvent): Boolean {
           val url = event.url ?: return false
           if (!url.startsWith("https://shop.example.com/")) return false
           router.open(url)   // your own navigation
           return true        // handled: the SDK does not open the browser
       }
   }

   // In Application.onCreate, next to apiUrl:
   //     TaleartConfig(apiUrl = "https://api.example.com", listener = AppHooks(router))

   The methods, their payloads and the events are in the Android SDK reference. onGroupImpression fires on native too, once per group per load. onComponentEvent reports a countdown's end and a promo code's copy. onUserInteracted reports each answer the server accepts to a poll, a quiz, a rating or a reaction.



7. Localise the texts

   The SDK's texts (the viewer's buttons, the banner's controls, the names it announces) are English by default. Set locale (BCP 47, such as he-IL) and the texts per locale. A text is looked up under the full locale, then its language, then stringsForEveryLocale, then English. A missing key shows English, never the key. With no locale set, the device's locale is used.

   TaleartSdk.init(
       TaleartConfig(
           apiUrl = "https://api.example.com",
           locale = "he-IL",
           strings = mapOf(
               "he" to mapOf(
                   "viewer.close" to "סגור",
                   "bar.seen" to "{name}, נצפה",
               ),
           ),
       ),
   )

   // One view only:
   // TaleartZone(apiUrl = "", zoneKey = "tak_…", locale = "he-IL", strings = mapOf("he" to mapOf("viewer.close" to "סגור")))

   The key names are in the Android SDK reference. Each string key has its English default there.



8. Verify

   Run the app on a device or an emulator, then check, in order:

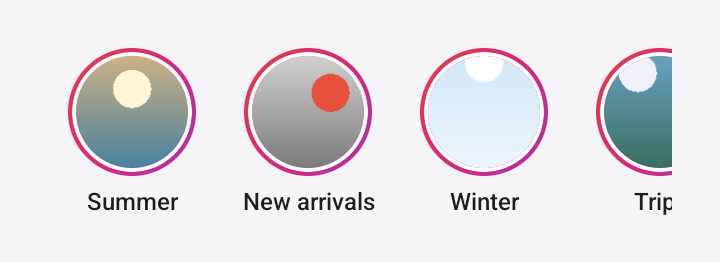

   • The bar (or banner) appears where you placed the view.

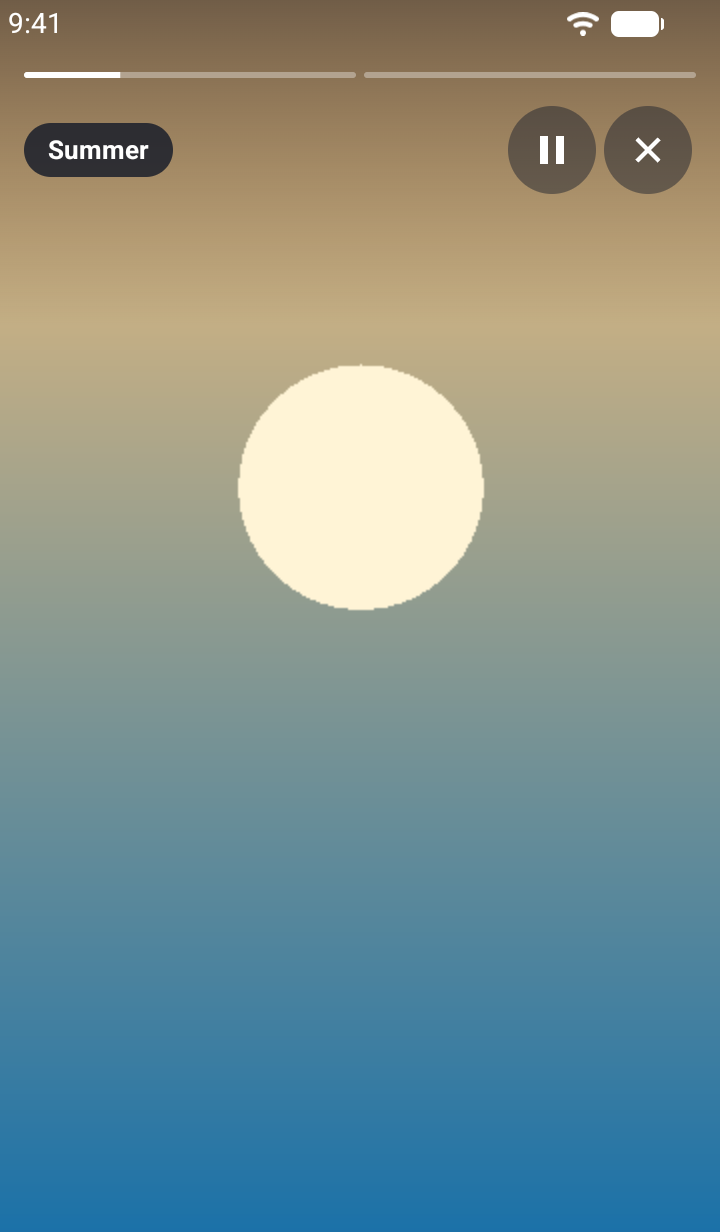

   • A tap on a circle opens the full-screen viewer, and Close (in your locale) returns to the bar.
   • Logcat, filtered on TaleArt, shows the warnings the SDK logs. A wrong key shows no zone and logs one failure; onLoadFailed gets the message.

   When the API runs on your own computer, newer Android versions can ask once to allow access to nearby devices or the local network; allow it, then reload.

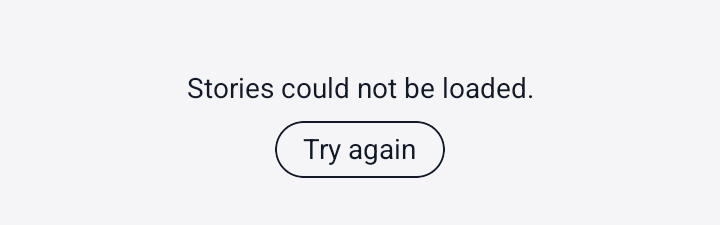

Show a message when a zone fails

By default a view that cannot read its zone shows nothing. Set fallback = FallbackMode.Message in TaleartConfig to show the translated "Stories could not be loaded." text with a "Try again" button, which reads the zone again. A view can show its own placeholder instead with fallbackView, and that wins over the message.

TaleartSdk.init(
    TaleartConfig(
        apiUrl = "https://api.example.com",
        fallback = FallbackMode.Message,    // the message and a retry button, for every view
    ),
)

// One view only: your own placeholder, which wins over the message.
view.fallbackView = myPlaceholder           // Java: view.setFallbackView(myPlaceholder)

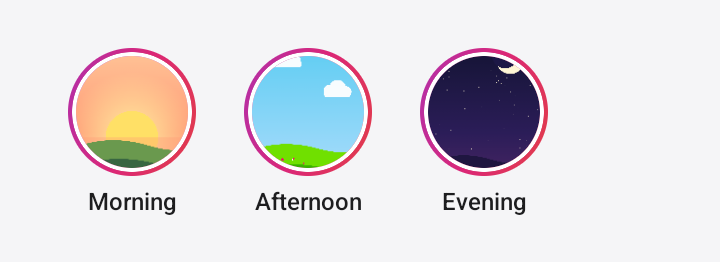

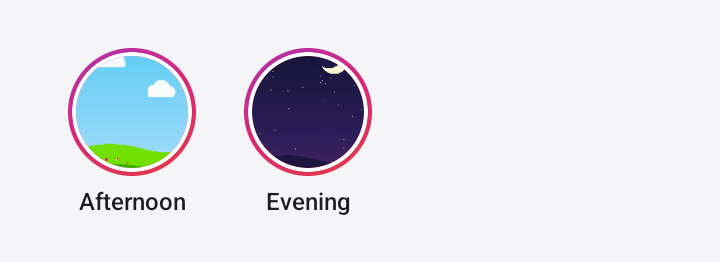

Cap how often a viewer sees a group

frequency hides a tale group after the viewer has seen enough of it. A view is one opening of the viewer on the group. The count stays on this device and is never sent to TaleArt. Groups over the cap leave the display, and when none are left nothing shows. The default is no cap.

TaleartSdk.init(
    TaleartConfig(
        apiUrl = "https://api.example.com",
        frequency = FrequencyRule.Once,     // hide a group after the viewer has opened it once
        // frequency = FrequencyRule.Daily,              // at most one view per 24 hours
        // frequency = FrequencyRule.Weekly,             // at most one view per 7 days
        // frequency = FrequencyRule.Count(views = 3),   // hide a group after 3 views (1 to 50)
    ),
)

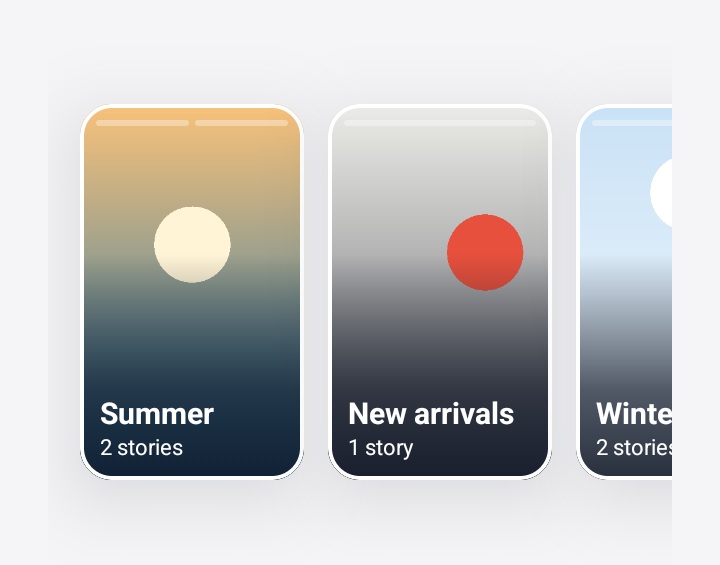

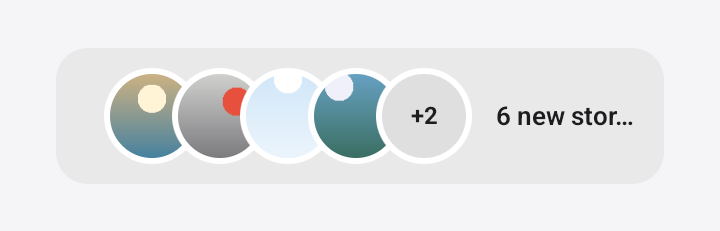

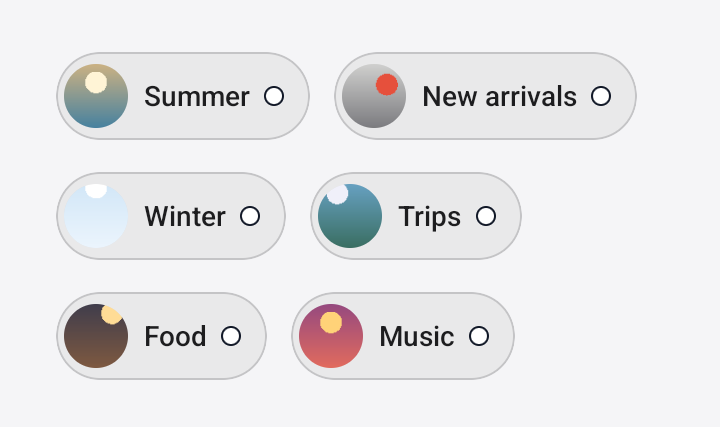

Bar layouts

A bar zone draws its groups in one of four layouts, set by the bar's layout setting in the dashboard. Ring is the default. The other bar settings (shape, size, titles, alignment and gap) apply where the table says so, and the rest are ignored. While the zone is read, the bar shows a loading skeleton in the footprint it had last, so the page does not move when the groups arrive. The skeleton is announced as busy, and it stands still under reduced motion.

Banner variants

A banner zone shows its groups one at a time, or in one of five other variants: the frame's variant setting in the dashboard picks it. A missing or unknown value is the carousel. Each variant ignores the settings the table names, and the rest apply. The carousel has been restyled: each slide shows the group's name and a Watch stories button on a scrim, and its previous and next buttons are 48 dp, so they are easy to touch. Right to left, the line of slides, the turn of the coverflow and the fan of the deck, and the marquee run the other way, and the buttons sit on the other edge.

Analytics events

The SDK sends impression, open, view and click events for each zone, in batches and in the background, so the app never waits on them. Turn them off for every view with analytics = false, or for one view with app:taleartAnalytics="false"; a view's setting wins. On native, an impression is a group's bar item first drawn, or a banner slide first shown: the SDK does not measure whether it is on screen.

TaleartSdk.init(
    TaleartConfig(
        apiUrl = "https://api.example.com",
        analytics = true,                   // false turns the SDK's events off for every view
    ),
)

<site.lempert.taleart.sdk.android.TaleartView
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    app:taleartZoneKey="tak_YOUR_ZONE_KEY"
    app:taleartAnalytics="false" />

Countdowns and promo codes

A tale can hold a countdown: the days, hours, minutes and seconds left to a moment in UTC, then its ended text. A tale can also hold a promo code: the code on a ticket, with a Copy stub beside it. Add either in the dashboard, as you add any element of a tale; the SDK draws it as the web SDK does. The countdown counts on the device's clock, so a visitor with a wrong clock sees a wrong time. A promo code is visible to every visitor, so it is not a secret.

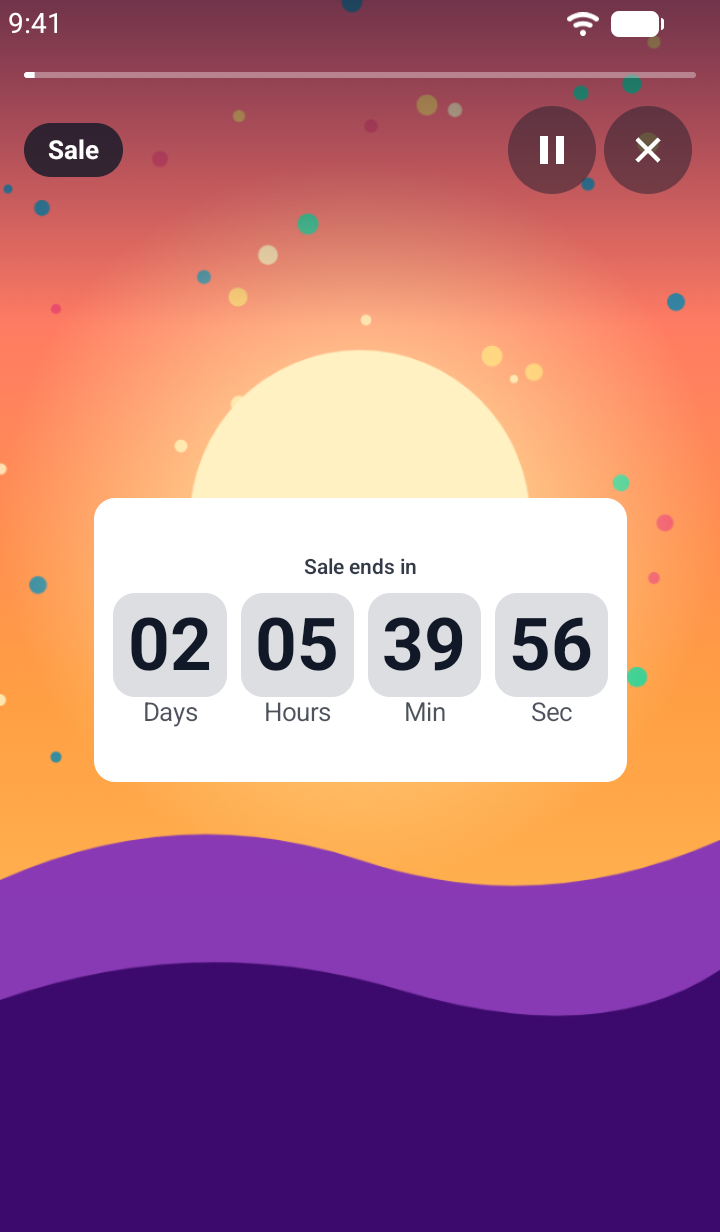

Countdown

Set the end as an instant in UTC, such as 2026-12-31T21:00:00Z. The units read Days, Hours, Min and Sec, and from the end on the ended text shows (Ended, unless you set your own). The end reaches your listener once, as onComponentEvent with event.action "ended" and the countdown as event.component.

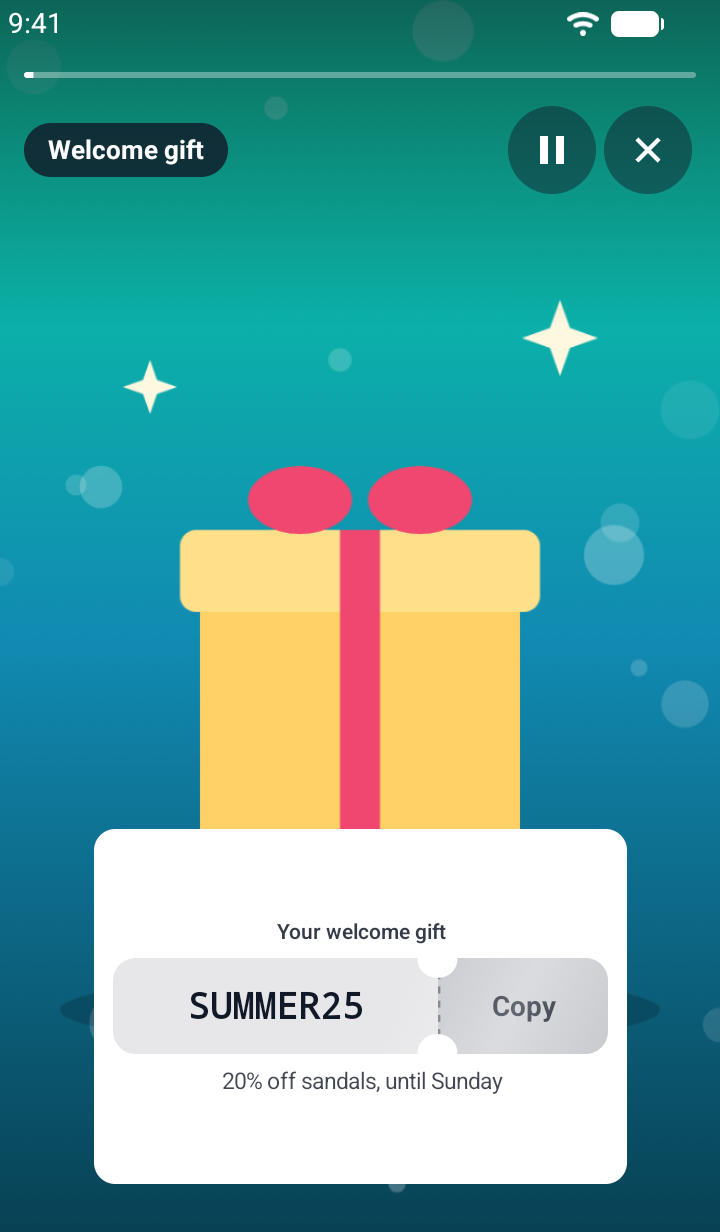

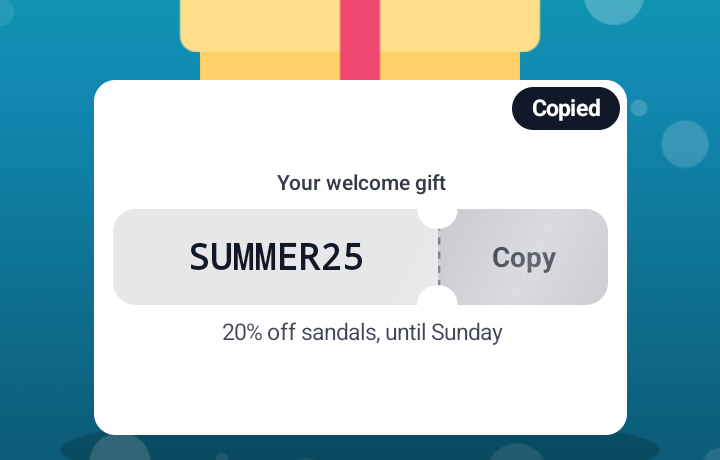

Promo code

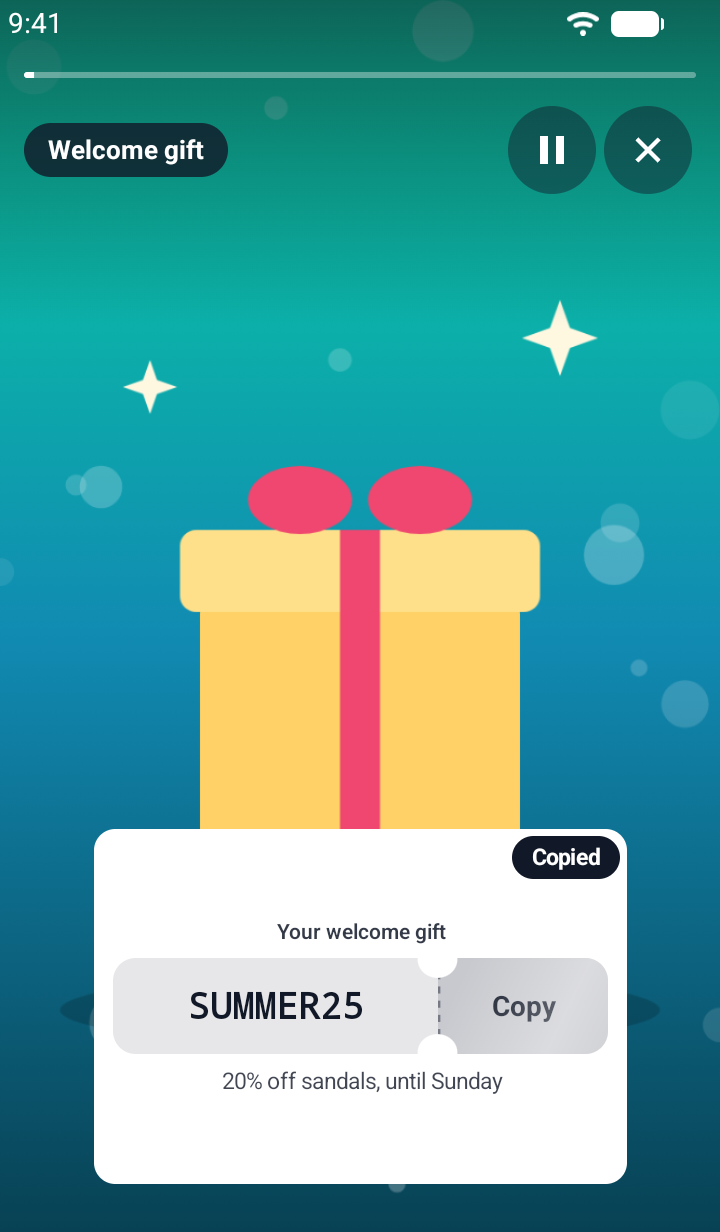

Set the code: 1 to 32 letters, digits, _ or -. Copy puts it on the clipboard and a toast over the card's top corner says Copied for four seconds; when the clipboard refuses, it says Could not copy. A copy reaches your listener as onComponentEvent with event.action "copied" and the code as event.component.value.

import site.lempert.taleart.sdk.TaleartEvent
import site.lempert.taleart.sdk.TaleartListener

// A countdown's end and a promo code's copy reach the listener as componentEvent.
class ComponentHooks : TaleartListener {
    override fun onComponentEvent(event: TaleartEvent) {
        when (event.action) {
            // A countdown reached its end, once; event.component.type is "countdown".
            "ended" -> println("Countdown ${event.component?.id} ended")
            // A promo code was copied; the code is the component's value.
            "copied" -> println("Copied ${event.component?.value}")
        }
    }
}

Polls, quizzes, ratings and reactions

A tale can hold one poll, one quiz, one rating and one reaction, each added in the dashboard as any element of a tale. A visitor answers each once: the answer is kept on the device, so a tale opened again shows the result at once. The server counts the answers and the SDK draws the counts it returns. In a preview nothing is sent or kept.

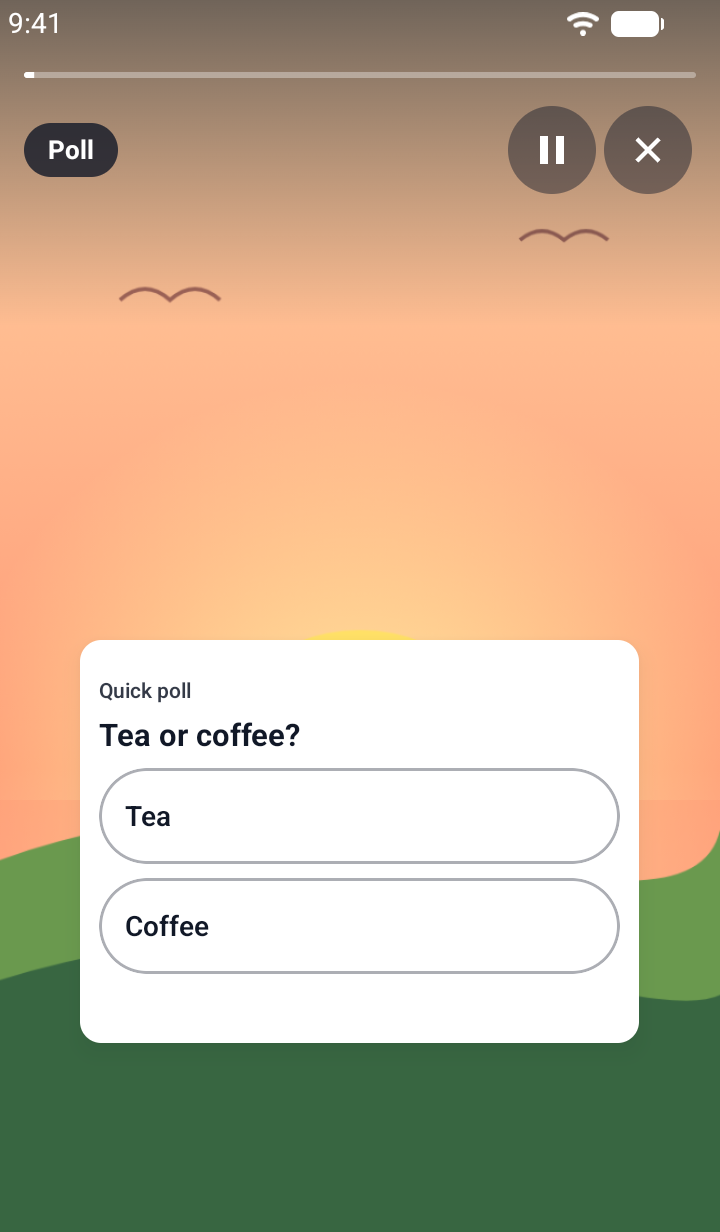

Poll

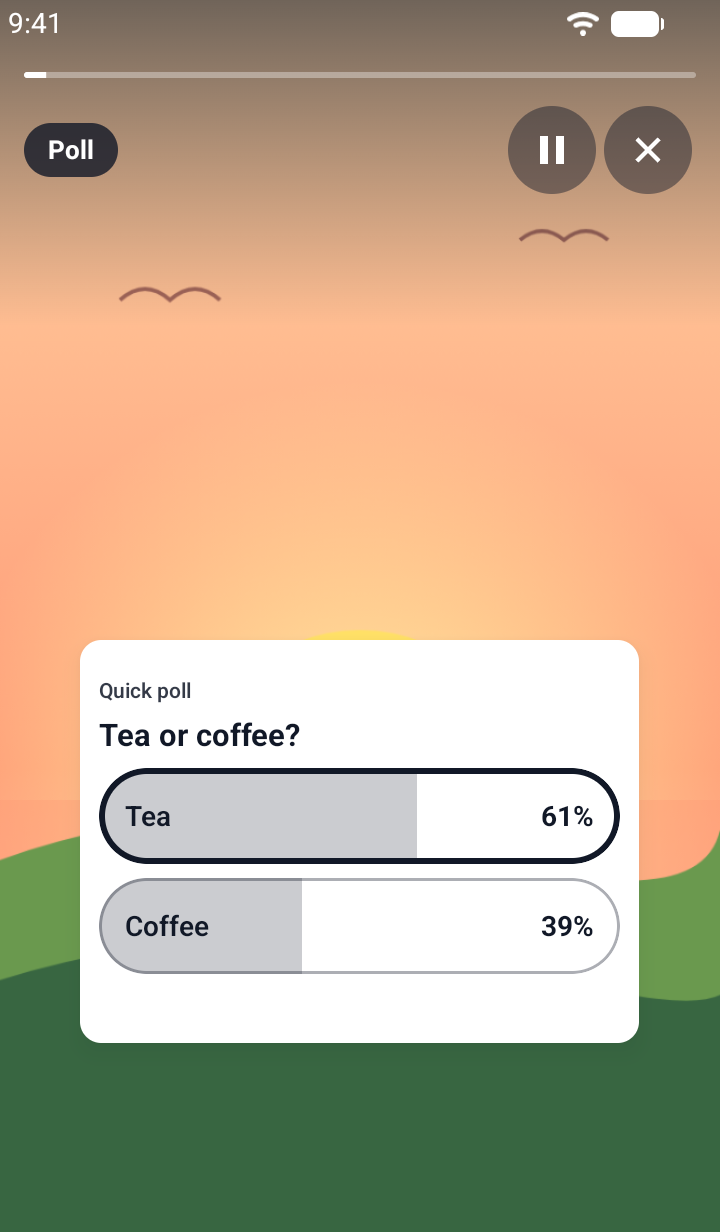

Two options as buttons. A vote shows each option's share, with the vote selected, and the result is read to screen readers.

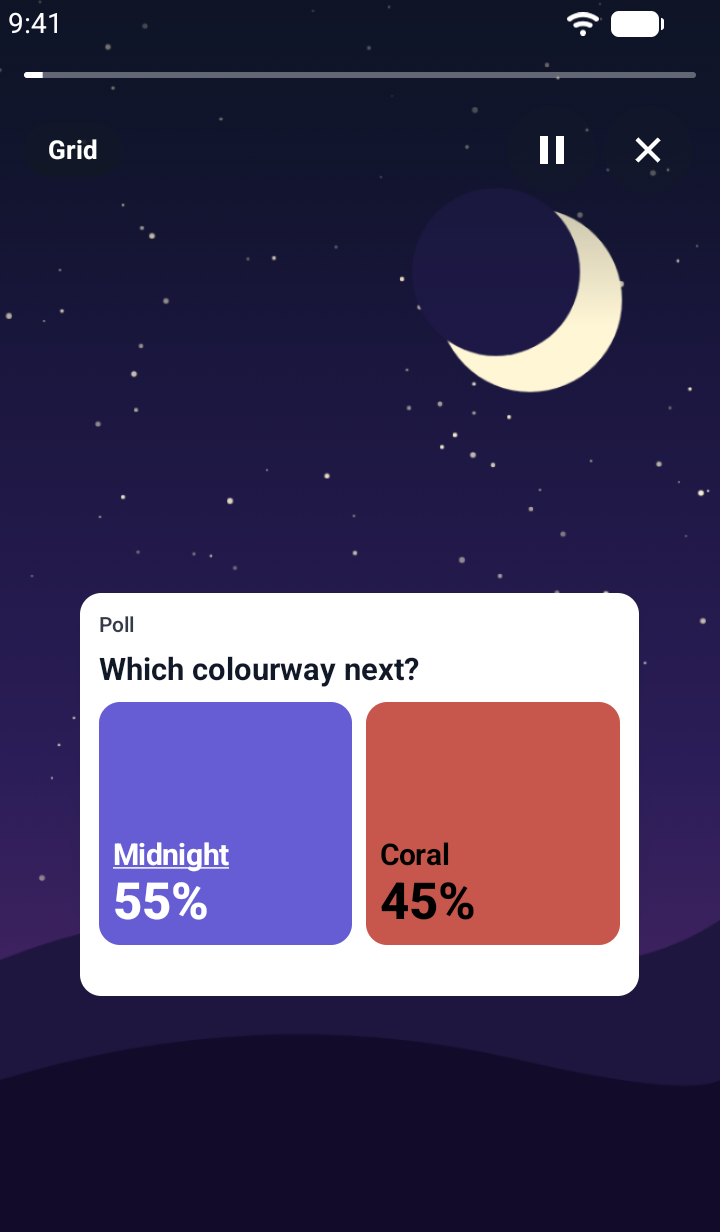

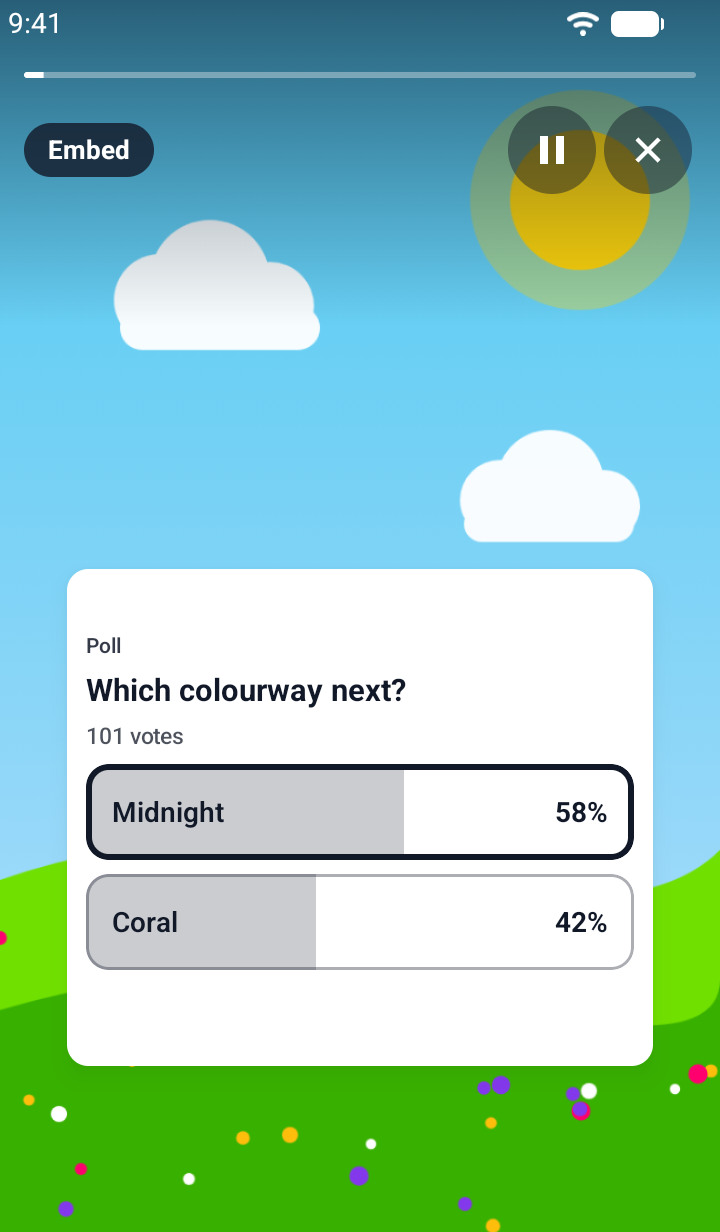

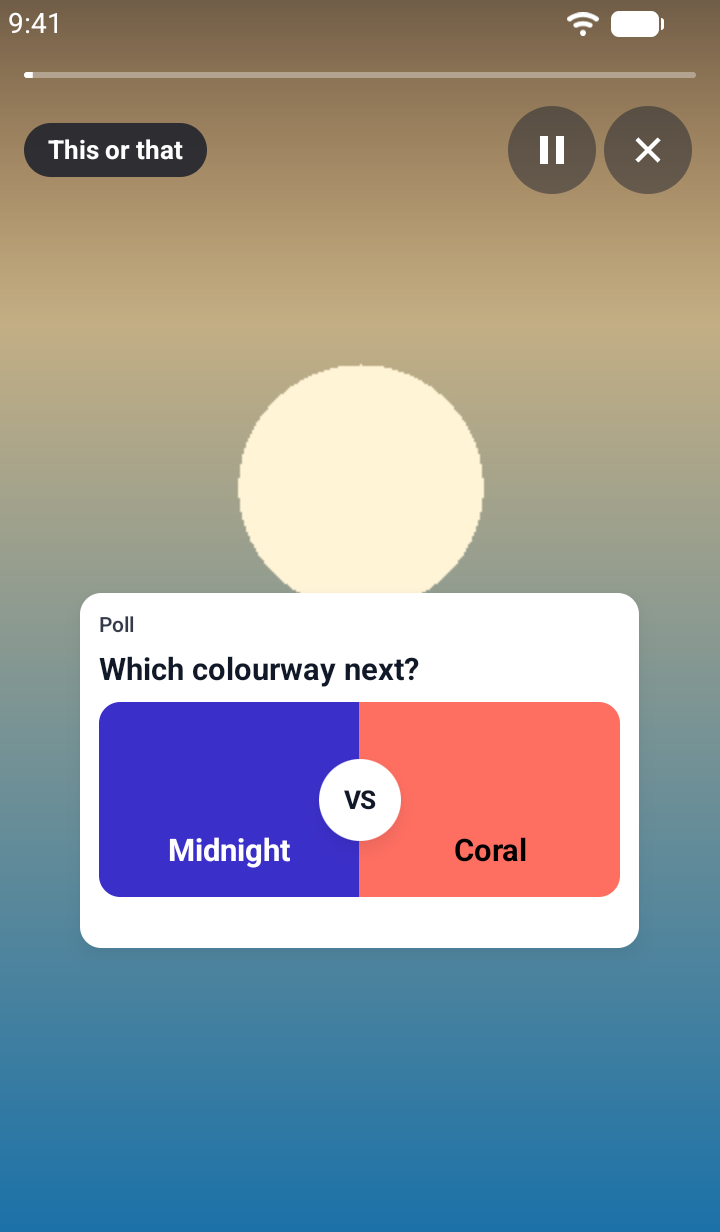

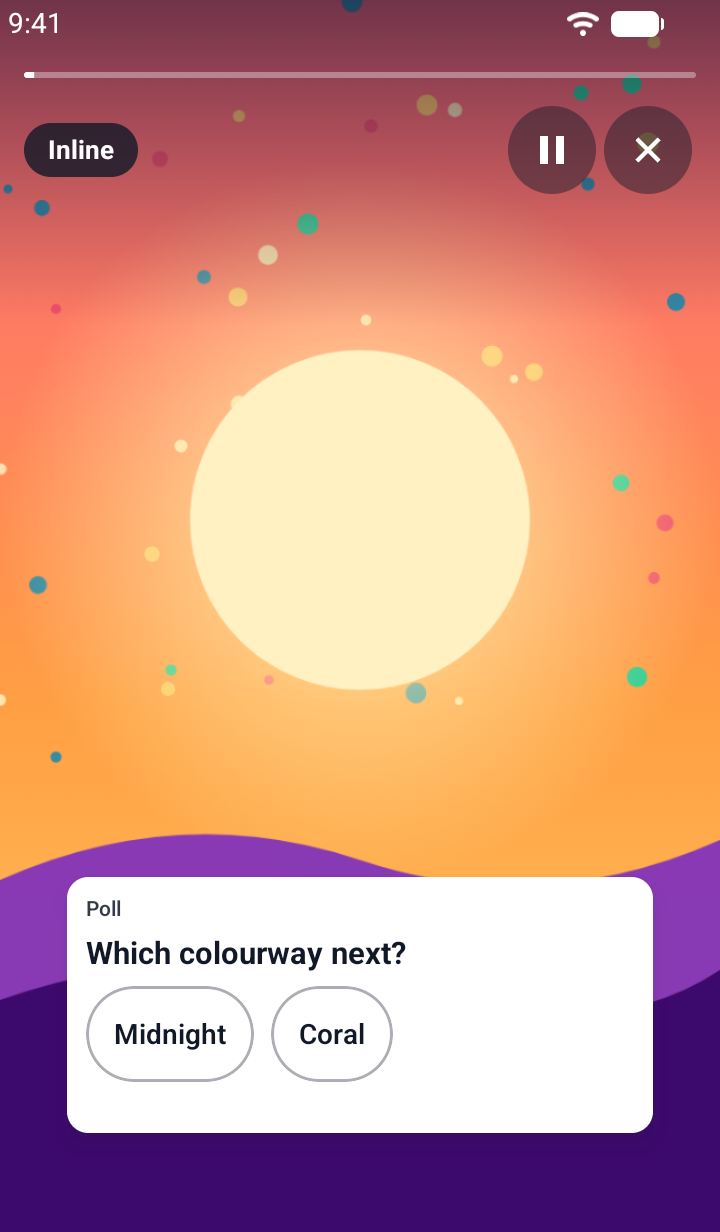

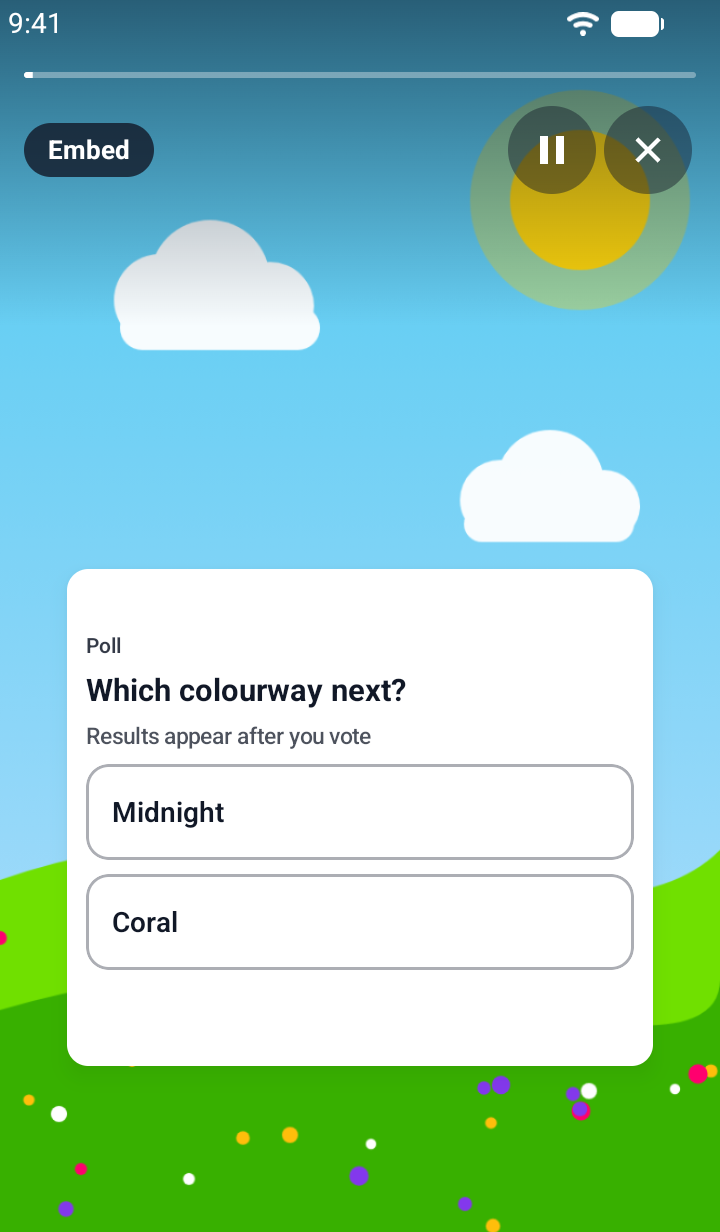

Poll views

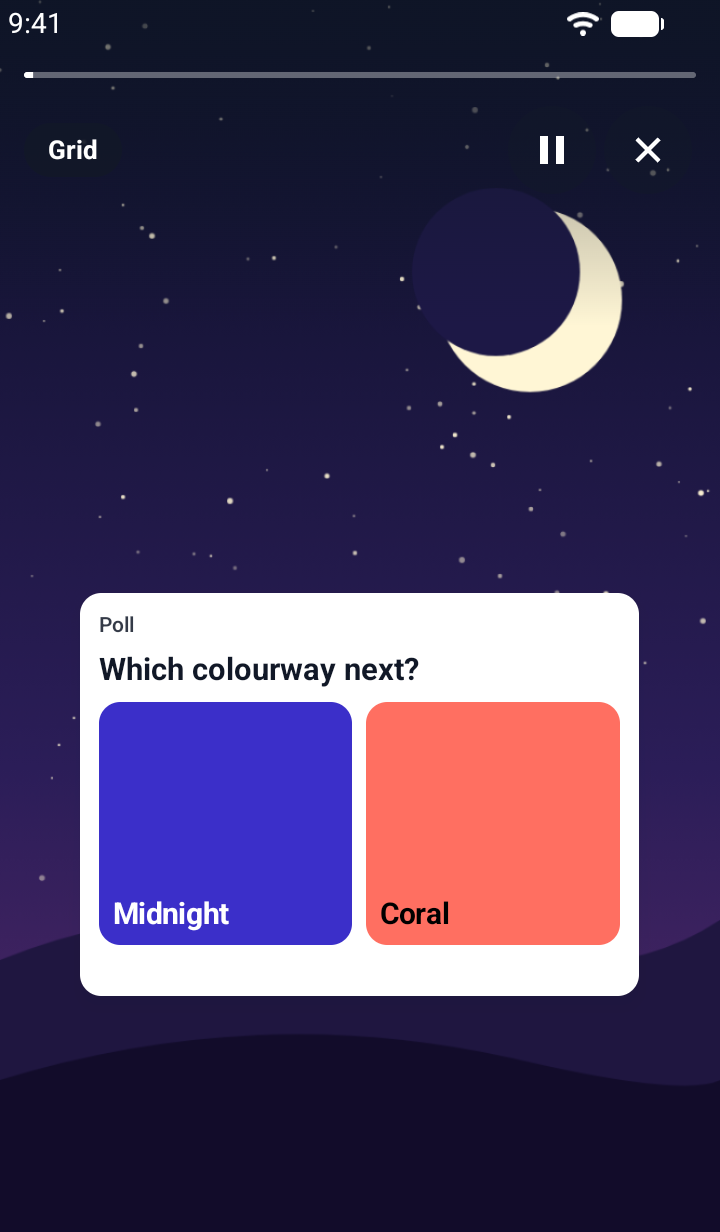

A poll is drawn in one of five views, chosen by the poll's view. The sticker is the default, and a poll without a view, or with one the SDK does not know, is a sticker. The view changes how the poll looks, not what it records: a vote is counted the same way in every view. Two options can carry a colour (options[].color, #rrggbb); only this-or-that and grid use it, and without one the theme's colours are used.

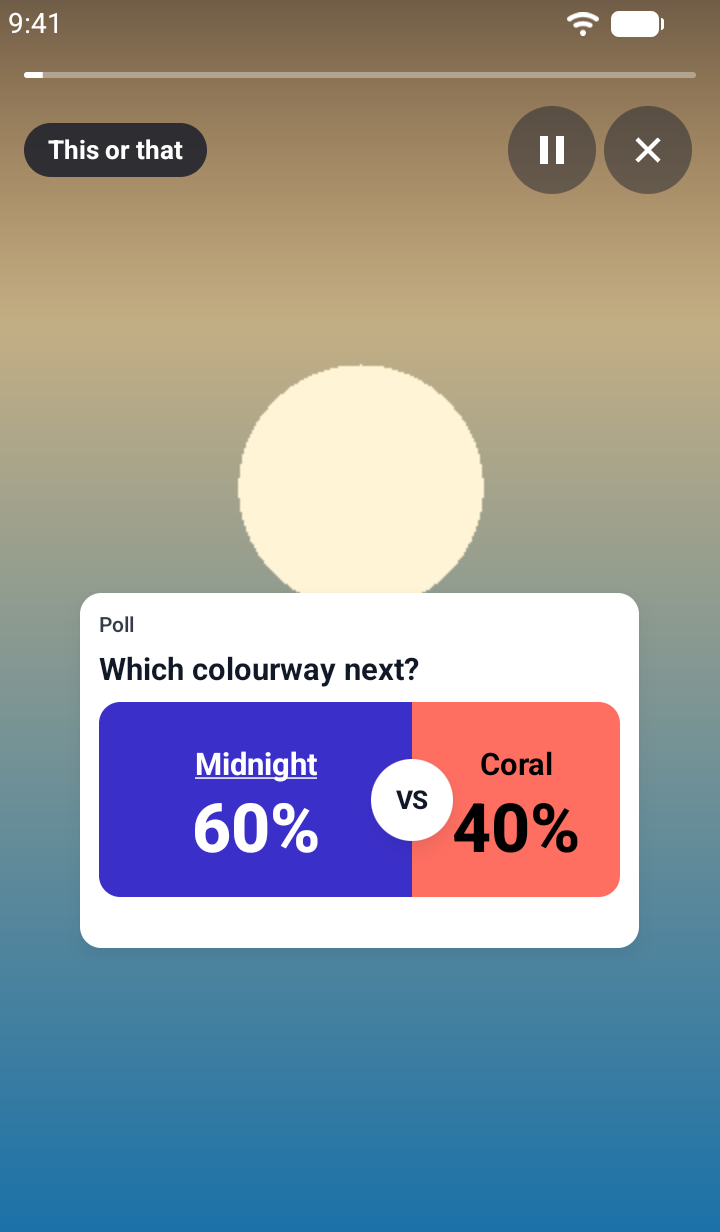

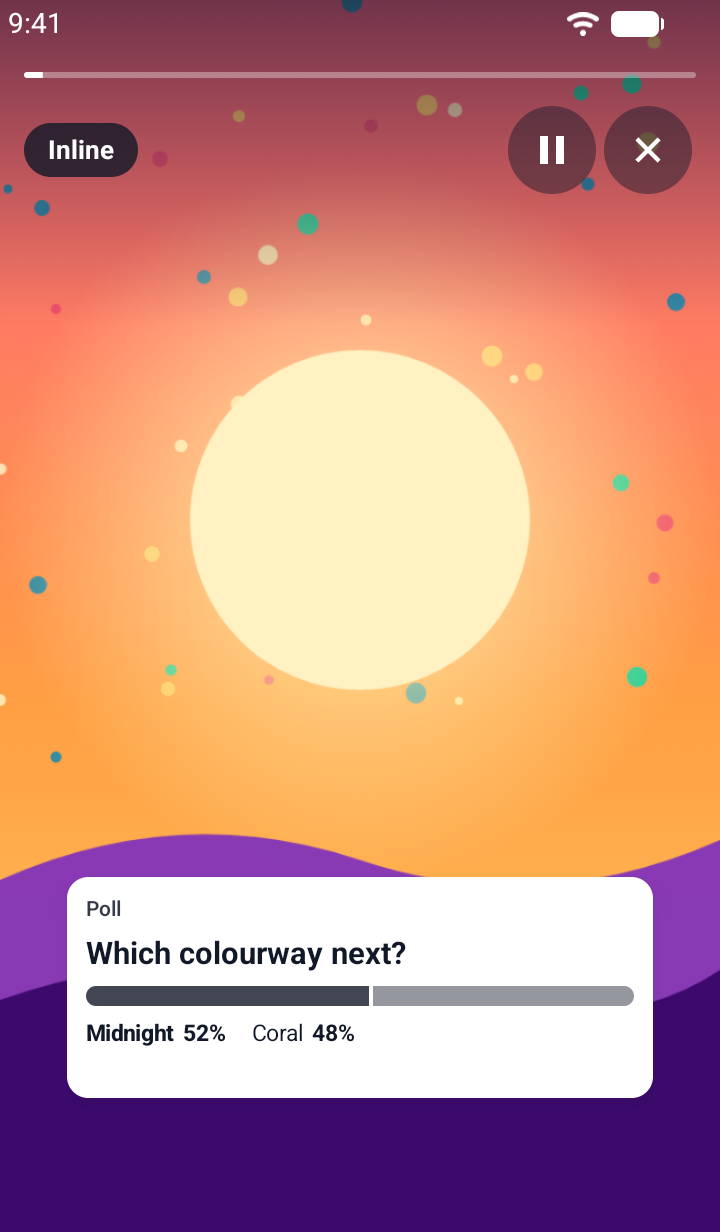

The embed, this-or-that, grid and inline views are shown before a vote and after one. The voted images are real votes in the sample app: a vote for Midnight in each view.

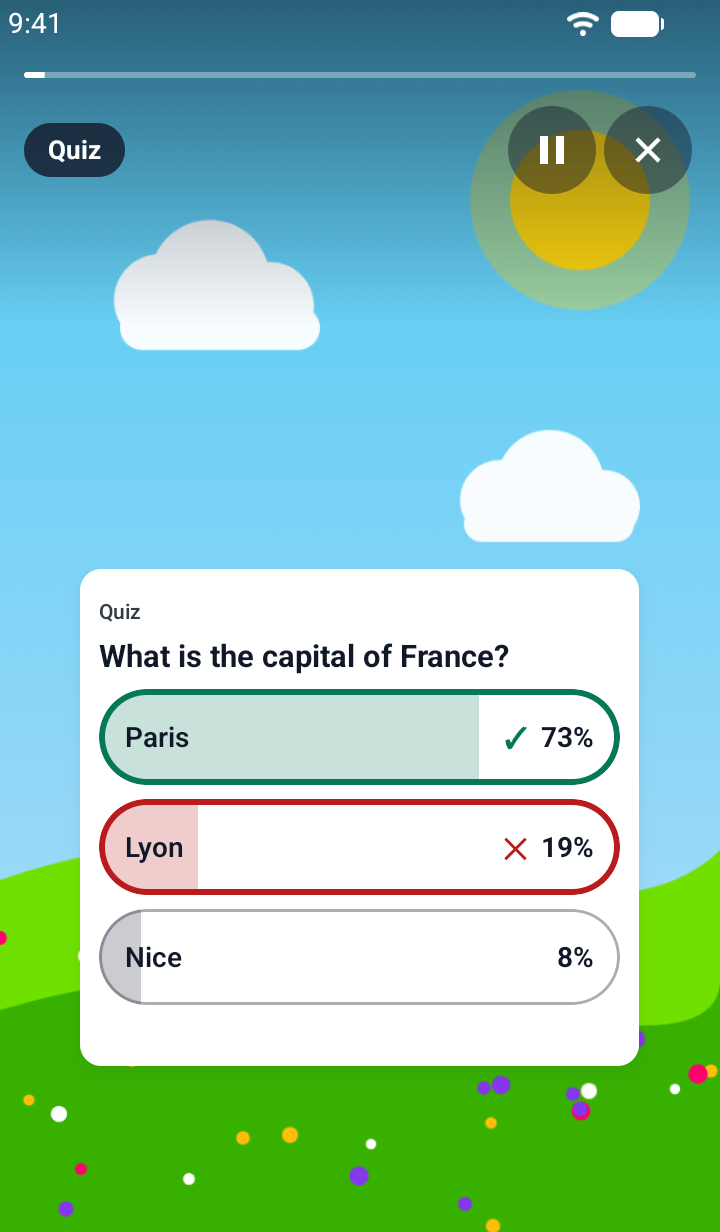

Quiz

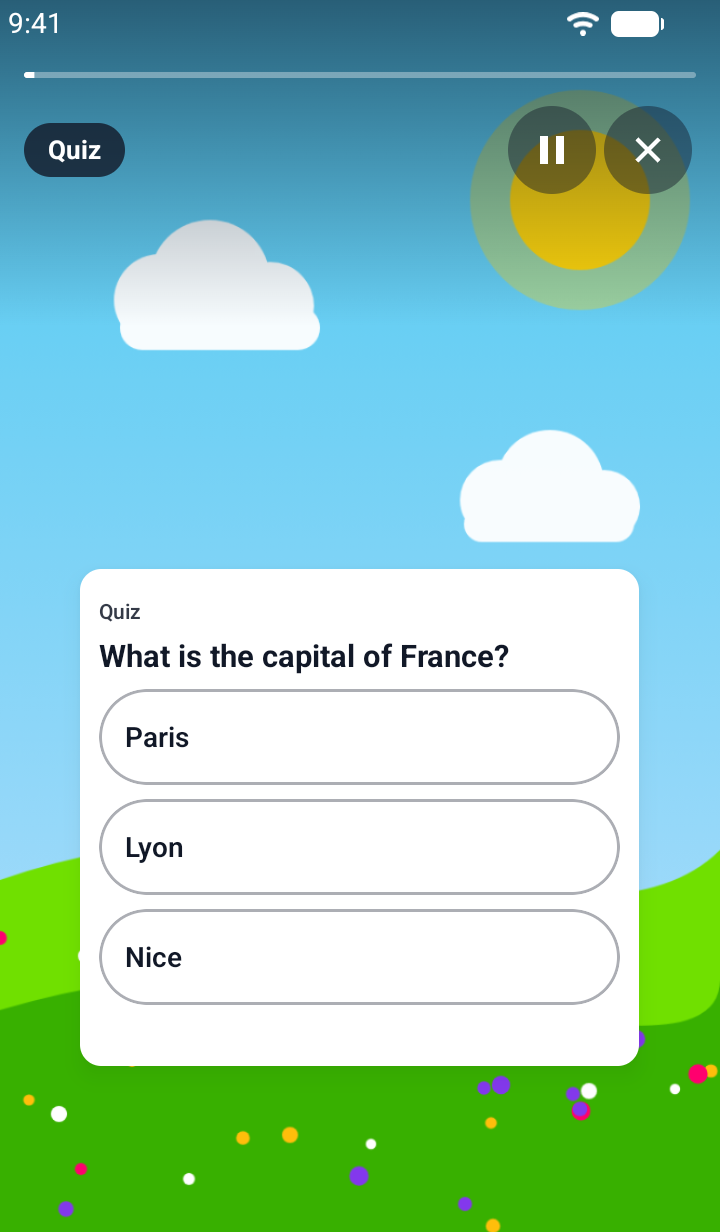

Two to four answers. Once answered, the quiz says whether the answer was right: the correct answer is marked with a tick and a wrong one with a cross, as words too. Without a correct answer the quiz works as a survey and shows only the shares. The correct answer comes with the tale, so a quiz is not a secure test.

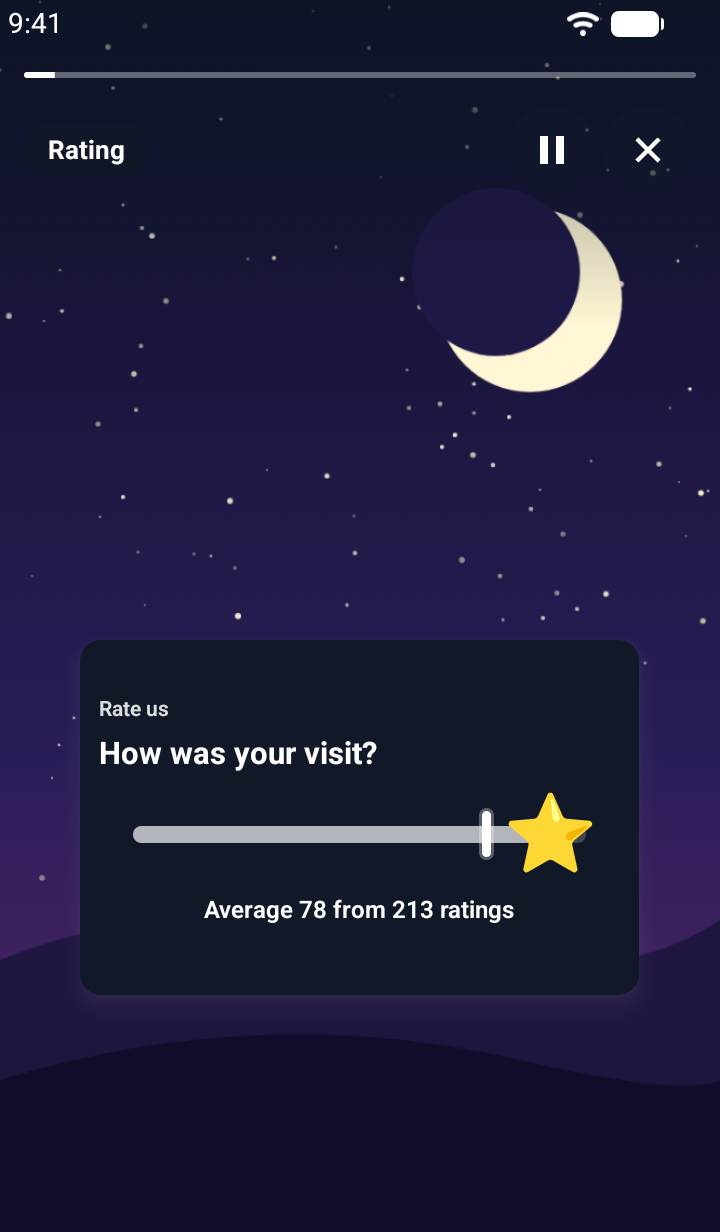

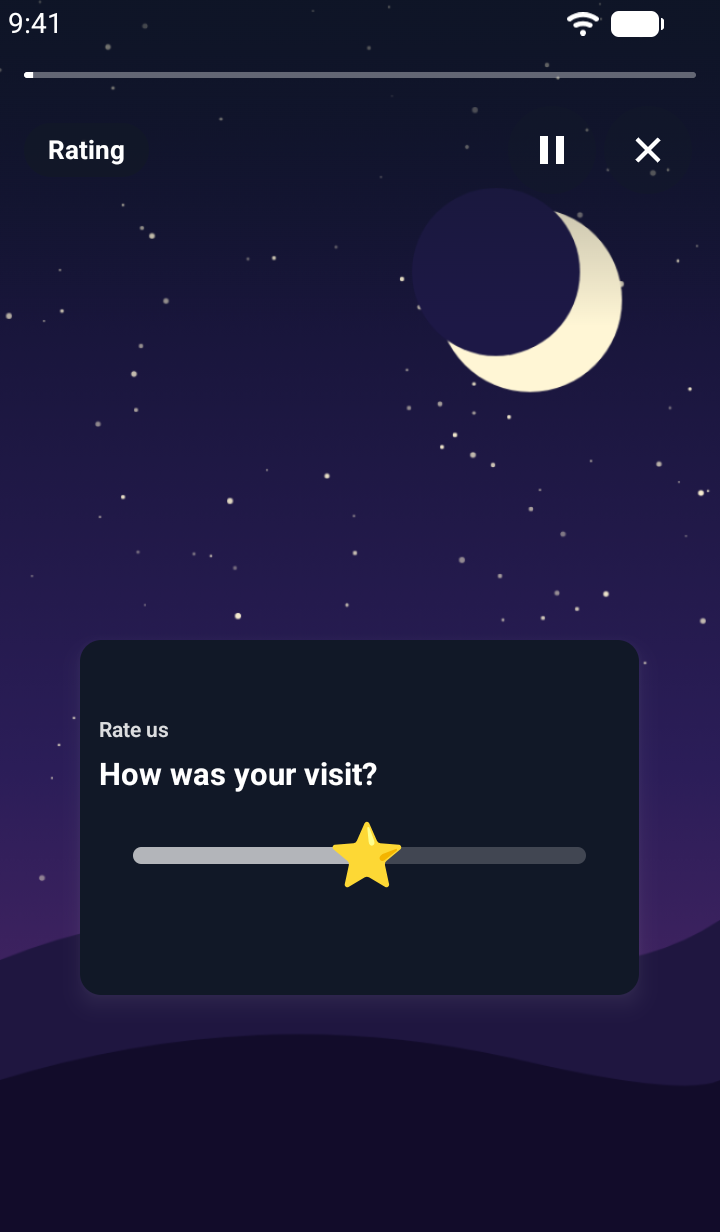

Rating

A slider from 0 to 100 whose thumb is an emoji you choose. The visitor drags it or taps the track, and the rating is sent when they let go. Once rated, the count and the average show.

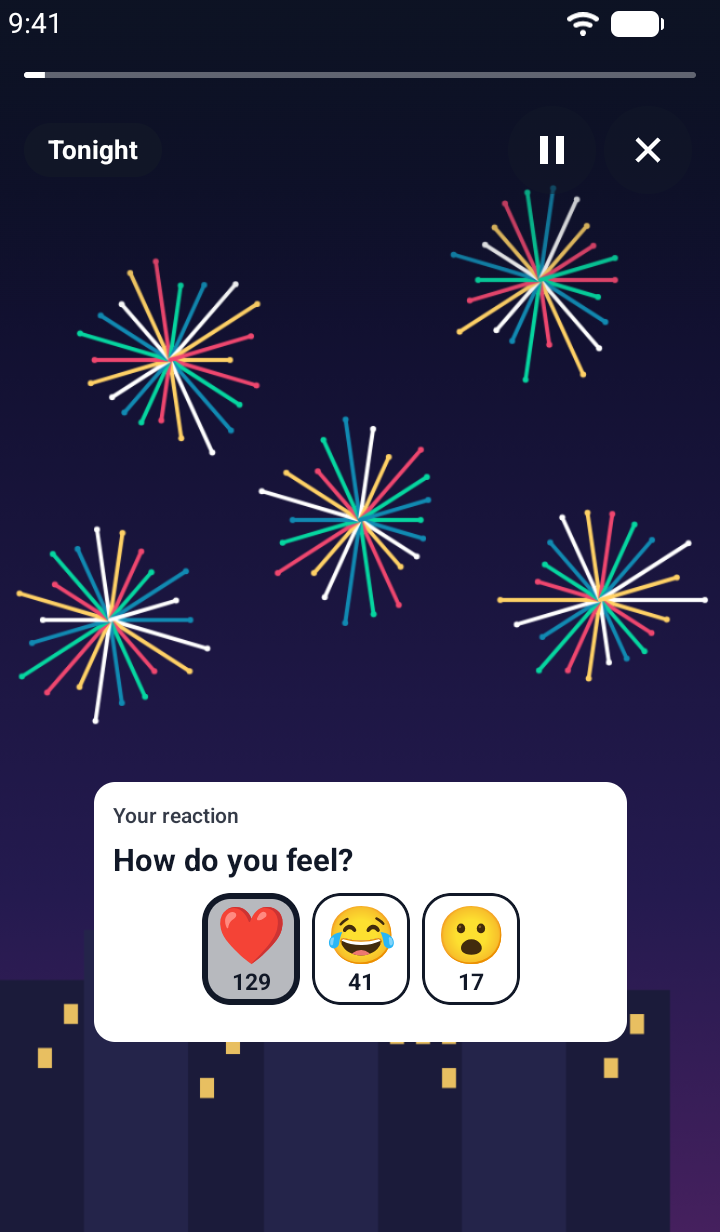

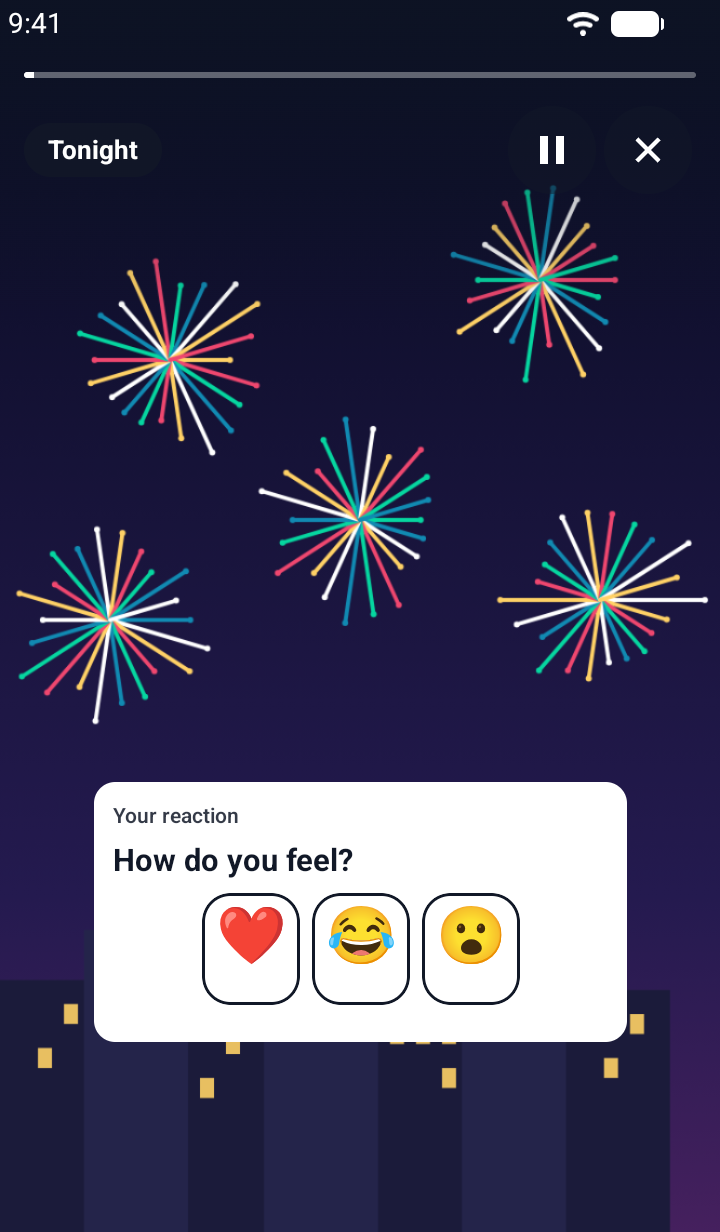

Reaction

Two to six different emoji. A tap sends that emoji; every emoji then shows its count, and the tapped one is selected.

Each accepted answer reaches your listener as onUserInteracted, with the element in event.component and the answer as its value, and as onComponentEvent with event.action "selected". An answer kept from an earlier visit is not reported again. When an answer fails, the SDK says so on screen and the visitor can answer again.

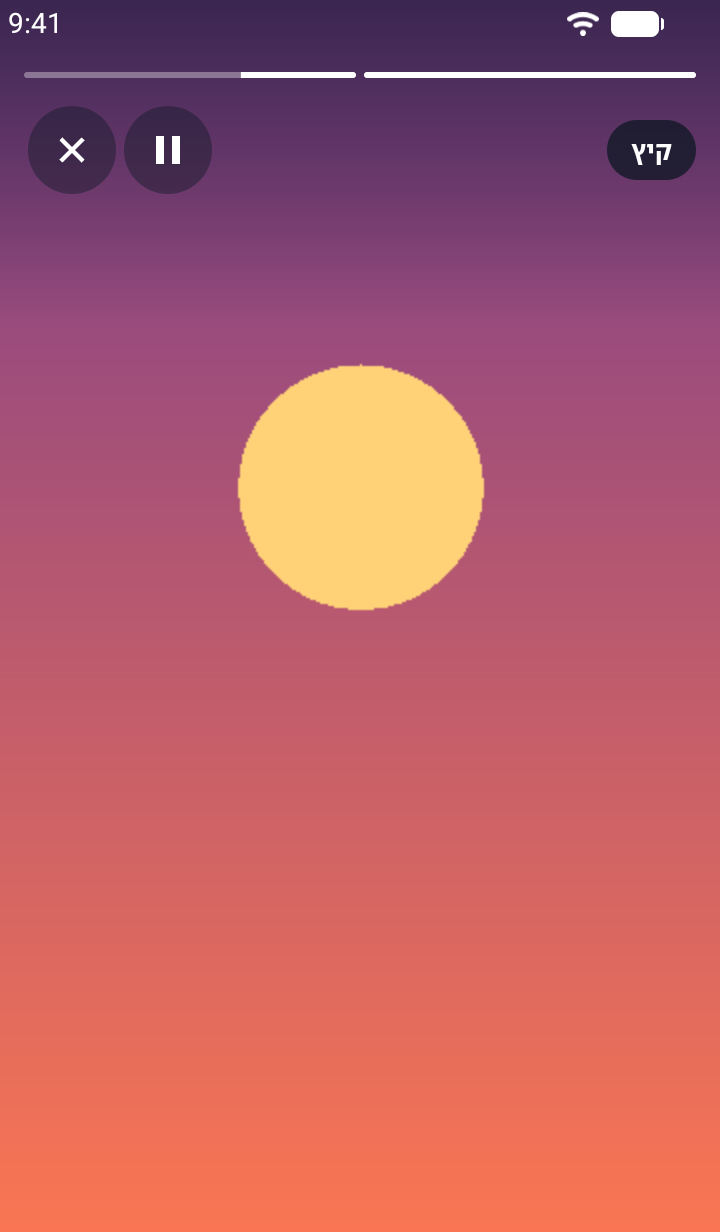

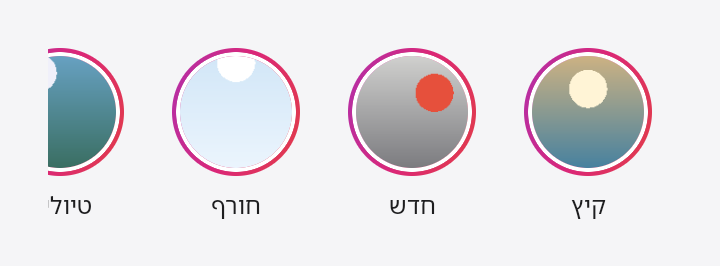

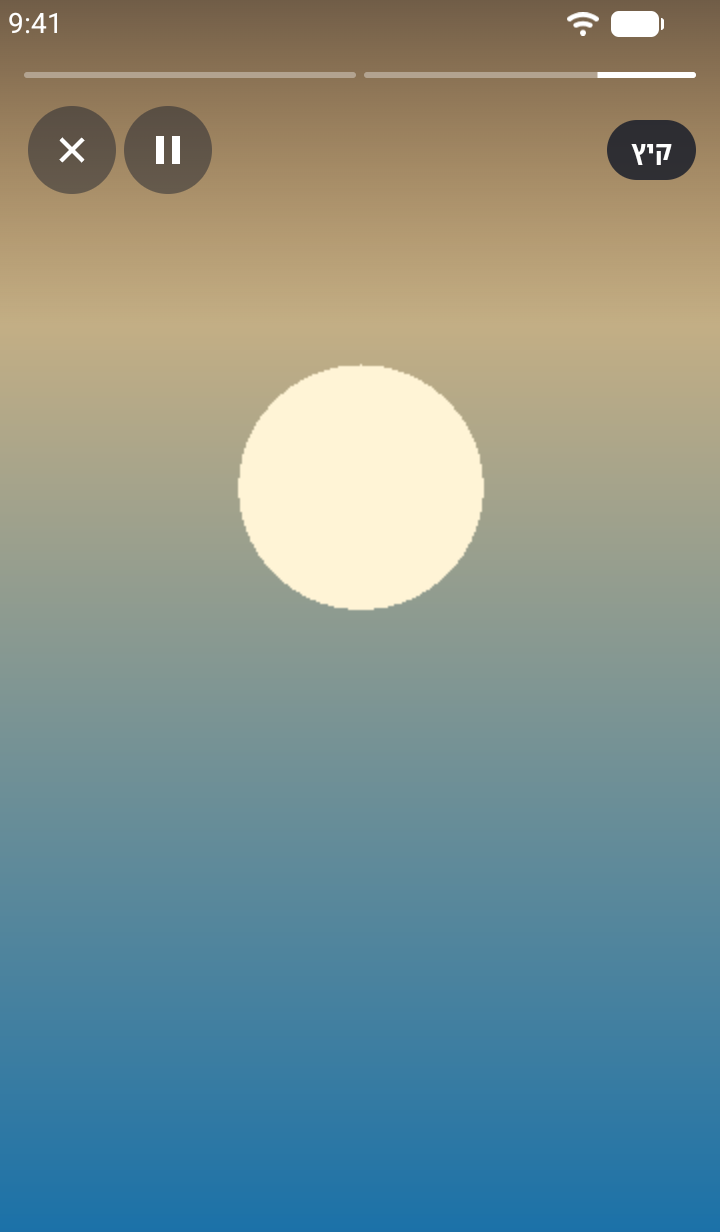

Right to left

The SDK's views lay out in the device's direction: Hebrew and Arabic are right to left, so the bar starts on the right, a viewer's progress fills from the right, Previous is the right third of the tale, and the poll and rating layouts follow. Numbers, promo codes and a countdown's digits stay left to right. To set the direction yourself, pass layoutDirection = "rtl" or "ltr"; any other value, or none, follows the device.

TaleartSdk.init(
    TaleartConfig(
        apiUrl = "https://api.example.com",
        locale = "he-IL",
        layoutDirection = "rtl",            // "ltr" or "rtl"; null (the default) follows the device
    ),
)

Backups and the visitor id

The SDK makes a visitor id once and keeps it in its own store on the device: the taleart-sdk SharedPreferences. It is random, not derived from the person or the device, and tied to no account. It is still a stable identifier of an app install, so cover it in your privacy notice and your consent setup. Clearing the app's data makes a new one. A reinstall does too, unless a device backup restores the store, and Android Auto Backup does restore it. To start fresh after a reinstall, exclude sharedpref/taleart-sdk.xml in the app's backup rules: android:fullBackupContent for Android 11 and lower, and android:dataExtractionRules from Android 12.

<full-backup-content>
    <exclude domain="sharedpref" path="taleart-sdk.xml" />
</full-backup-content>

<data-extraction-rules>
    <cloud-backup>
        <exclude domain="sharedpref" path="taleart-sdk.xml" />
    </cloud-backup>
</data-extraction-rules>

Not available natively yet

• onGroupImpression counts a group when it is first shown in a render, not when it is on screen: the native SDK does not measure visibility yet.
• The Compose TaleartZone has no properties parameter: a composable uses the SDK’s viewer properties from TaleartConfig, and cannot set its own for one zone.

The Install a zone page covers the Web SDK, which draws the same elements.
